Control unit, Accessory

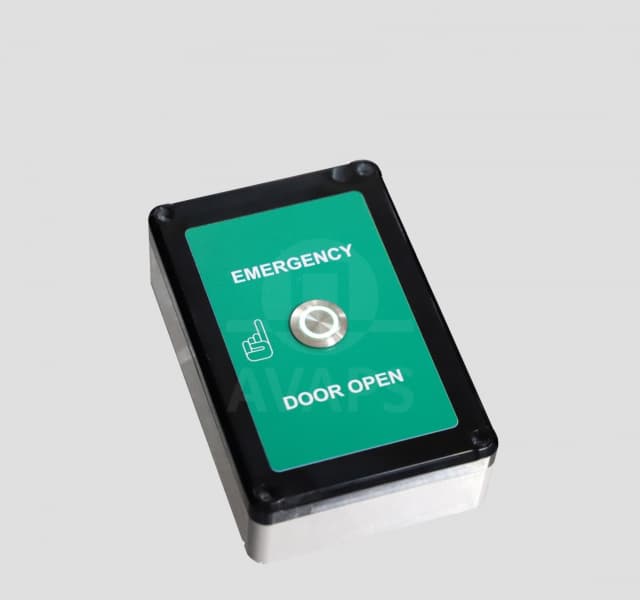

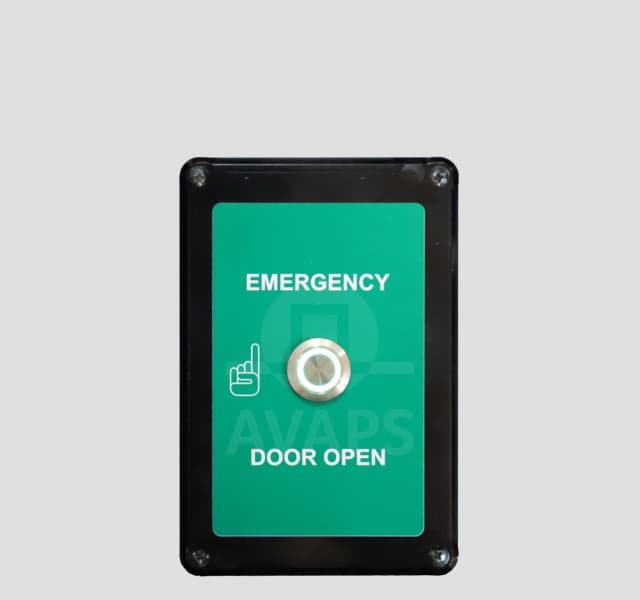

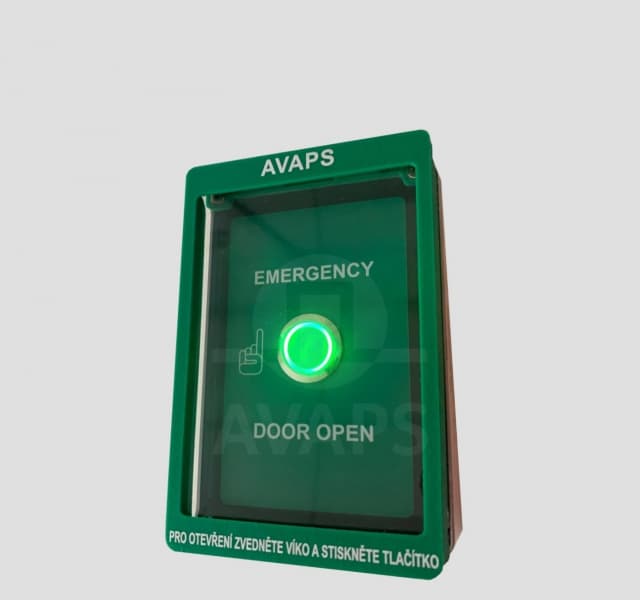

Emergency open button
  • Design and functional solution
  • Easy operation of the fire shutter
  • Evacuation of people
  • Button dimensions: 130 x 130 x 47 mm

Key product features

Design and functional solution
Easy operation of the fire shutter
Evacuation of persons

Tlačítko nouzového otevření

Description:

The button is used for emergency opening of the fire shutter in the event of a fire alarm. In a situation where an escape route from the adjacent fire compartment leads through the fire shutter, it is possible to break the glass and then press the button to open the fire shutter (because in the event of a fire alarm, the fire shutter will close automatically).

Pressing the button stops the closing of the fire shutter - use only in the case of protection of  persons or property - for a maximum time of 120 s.

When the button is pressed, the fire shutter opens; if not pressed, the fire shutter closes automatically.

The button is intended for installation in the interior of buildings, it can be mounted so-called "on plaster". The connection of the emergency open button to the control panel (AOP) is made with a three-pin round connector.

The button comes standard with two spare slides. Suitable, for example, when installing a fire shutter in public buildings with a large number of people (shopping centers, traffic structures, hotels).

Additional equipment of the AVAPS fire shutter.

Advantages:

  • Immediate possibility to control the fire shutter, for example at the moment of closing the escape route
  • Stops closing of the fire shutter for up to 120 s in order to evacuate people

Tlačítko nouzového otevření



Materials for download
